96-Well Sample Concentrator
96-Well Sample Concentrator

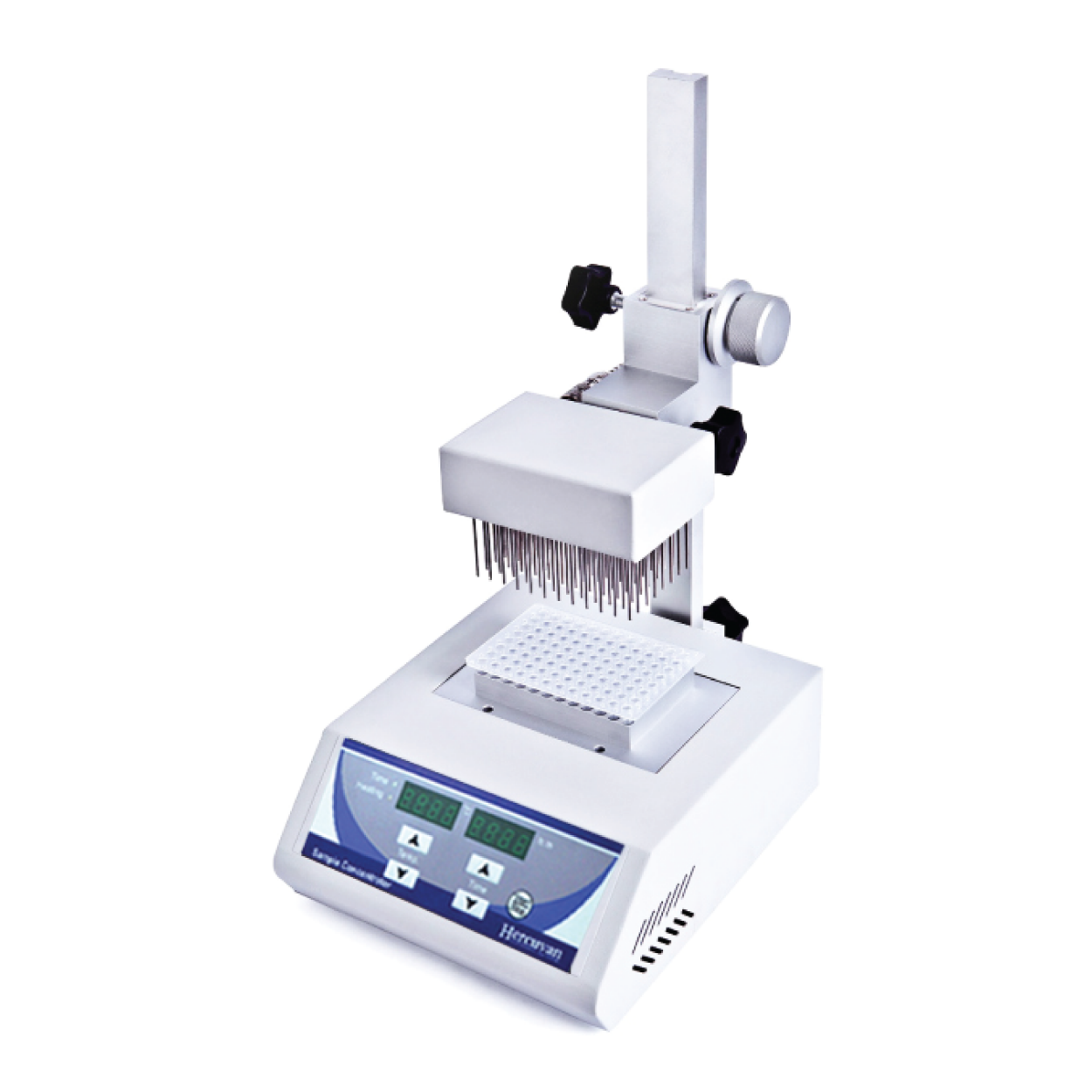

TT-200-96SC 96-Well Sample Concentrator is intended to provide rapid evaporation of solvents from samples in 96-well PCR plate, 96-well microplate or up to 96 x 0.2ml microtubes in a single batch. It works under the principle of solvent evaporation to concentrate samples. By heating the samples/solution in a dry block heater coupled with a stream of inert gas (nitrogen) direct to the surface of the sample, vapour is rapidly driven off and the sample is quickly concentrated.
Optional Accessories available, can select as below.
The sample concentrator is built with gas chamber with 96 gas needles mounted onto a height adjustable stand which allows flexible positioning above the samples. It is a compact device commonly used to replace high cost rotary evaporators and safe to be used in fume hood.
Couldn't load pickup availability
General Specifications
1. Features:• Concentrate up to 96 samples simultaneously
• Optional flow regulating valve to minimize wastage of nitrogen gas.
• Can be used in fume hood when concentrating toxic solvents
• Adjustable gas needle position to suit different types of sample tubes
• Simple installation, operation and maintenance
• Built-in over temperature protection device, automatic fault detection system and alarm function
• Digital display of temperature and time
• Compact foot print, fits all standard fume hood
2. Stroge Temperature: Room Temperature
